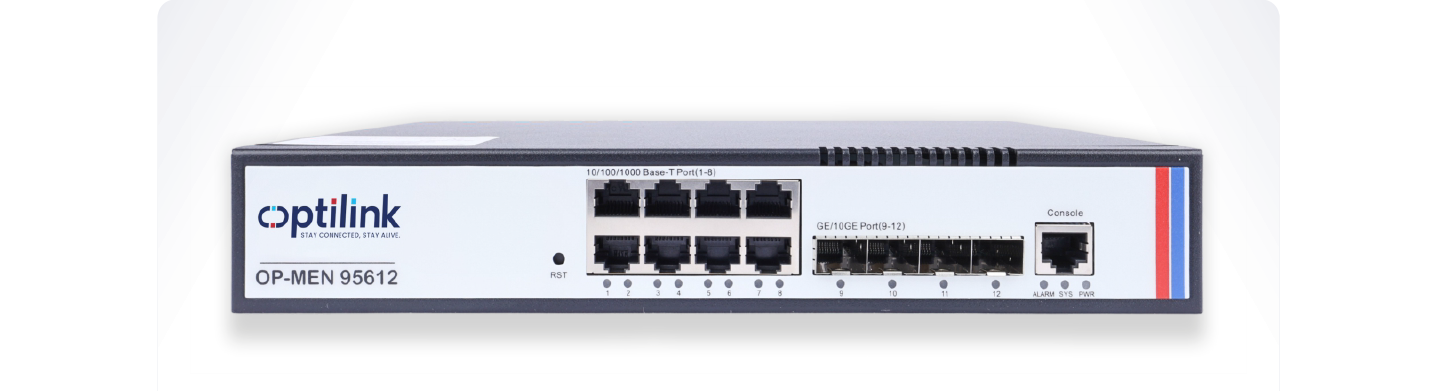

The OP-MEN 95612 series is a Layer 3 Ethernet Managed switch designed for cost-effective Gigabit access and 10 Gigabit uplink, ideal for enterprise networks and ISPs.
High Speed CPU
Low Power Consumption
Software Customisation
Higher Speeds
Product Interface
UTP
SFP /SFP+
Power AC
Product Features
The product’s general features include a compact dimension of 260 × 210 × 44 mm and a lightweight design of ≤3kg, making it easy to deploy. It operates with AC 100–240V/47–63Hz or optional DC 36V–75V, consuming ≤22W power.
Hardware Features
The product is powered by a Realtek chip solution with an exchange capacity of 128Gbps and a packet forwarding rate of 95Mbps. It supports 16K MAC addresses, 1K multicast, 512 routes, and comes with 512MB memory and 32MB storage.
Software Features
It supports 4K VLAN, VLAN based on port, MAC, and protocol, along with dual Tag VLAN, static QinQ, and flexible QinQ. Additionally, it includes 16K MAC address support with static MAC settings, black hole MAC filtering, and port MAC address limit.
Download Data Sheet
