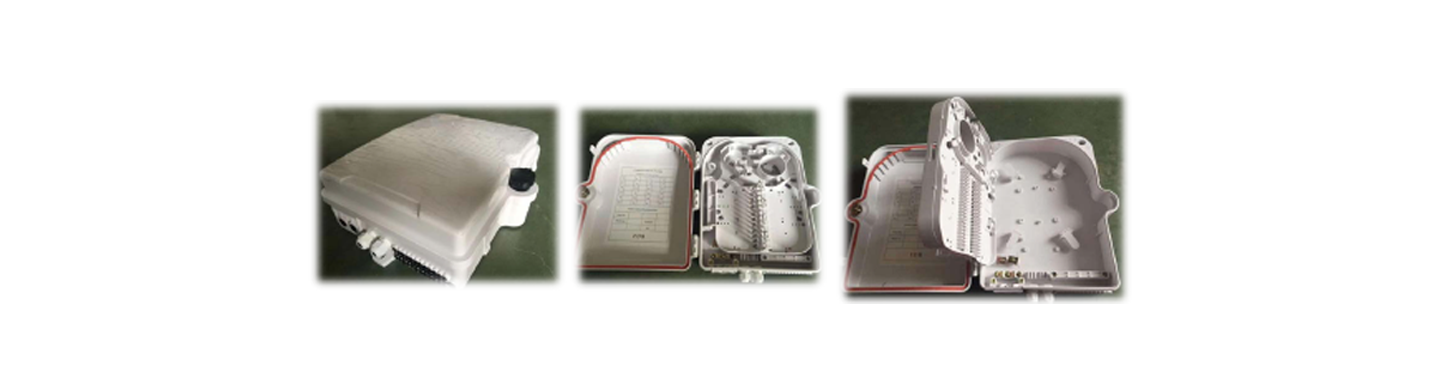

1X24-WAY FSDB is suitable for the joint point between armored optical cable and drop cable in optical fiber access network.
Compact, Reliable, Weather-Resistant Connectivity
High Speed CPU
Low Power Consumption
Software Customisation
TEC
Product Features
The product offers excellent sealing and weather resistance, featuring special cable inlet and outlet holes for secure installation. It ensures reliable fixing with a compact design and provides fast connector holes for quick setup. Additionally, it is compatible with FC, SC, and LC adapters, making it versatile for various applications.
Applicable Environment:
The product is designed to operate reliably in harsh conditions, with a working temperature range of -40°C to +65°C, ambient humidity tolerance of up to 95% at +40°C, and an atmospheric pressure range between 70 kPa and 106 kPa.
Packaging Information
Carton Packing – Storage temperature -30°C~+55°C, relative humidity ≤90% (+30°C);
Storage precautions –The air acidity, alkalinity or other harmful gases in the warehouse should meet the requirements of environmental protection regulations
Installation:
- First measure the wall mounting holes of the box with a ruler
- According to the size measured, mark the wall, and fasten the screws to the wall with the air gun;
- Hang the box on the wall
Order Guide:
Name: FSDB
Model: 1X24-WAY FSDB
Dimension (mm) ±10: 325 × 240 × 100 (Excludes projecting parts like hinges, door locks, and fittings)
Capacity:
- Finished end: 24 cores
- Splice: 24 cores
- Can install 1 mini-type PLC Splitter
Order Guide:
The FSDB 1X24-WAY FSDB model has dimensions of 325 × 240 × 100 mm (±10 mm), excluding projecting parts such as hinges, door locks, or fittings. It has a capacity of 24 cores for finished ends and 24 cores for splicing, and it can accommodate one mini-type PLC splitter.
