Widely used in FTTH Access network, Tele-communications networks, CATV networks, data communication network, Lord area network, indoor and outdoor application.
Weatherproof, Scalable Connectivity
High Speed CPU
Low Power Consumption
Software Customisation
TEC
Product Features

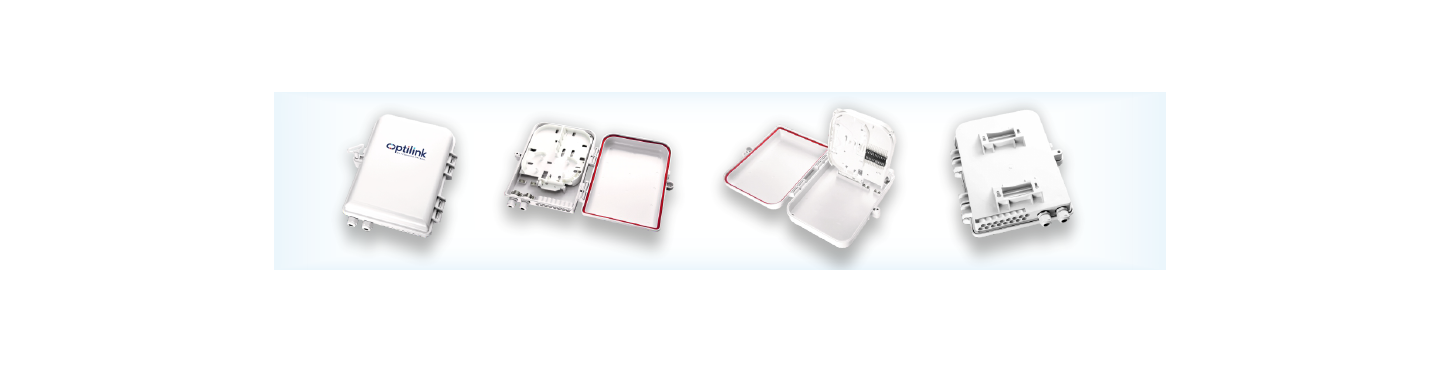

The product is designed with an industry-standard user interface and built to withstand harsh conditions with anti-UV, ultraviolet-resistant, and rainfall-resistant properties. It supports up to 16 FTTH drops and offers flexible installation options with both wall and pole mountability. Additionally, it comes equipped with 2 inlet ports and 16 outlet ports for efficient connectivity.
Installation Made Easy
- Insert small diameter cable and fix it.
- Connect small diameter cable with splitter input cable by fusion splicing or mechanical splicing.
- Fix the 1×8 or 1×16 splitter
- Connect splitter ribbon fibers with output pigtails that coated loose tube as below
- Fix the arranged output pigtails with loose tube to tray.
- Lead output pigtail to the other side of the tray, and insert adaptor as below
- Pre-insert optical drop cables to outlet holes in order, then seal it by soft block.
- Pre-installed field assembly connector of drop cable, then insert connector to optical adapter in order and tie it by cable tie
- Close the cover, the installation is finished.
Download Data Sheet
