OP EOLT 97024P
4PON Port 1U Pizza-Box OLT with 10G ports

MEN Switch, MEN Switches, gpon olt, gpon ont, gepon olt, gepon onu

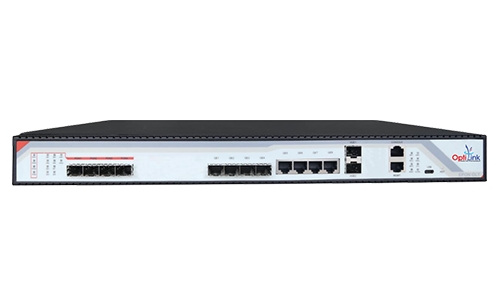

OP-EOLT 97024P is 1U high 19 inch rack mount product. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to deploy in a compact room environment.

The OLT can use for “Triple-Play”, CPN, IP Camera, Enterprise LAN and IOT applications. It is a high performance products.

OP-EOLT 97024P provides 1 USB interface, 4GE(copper) and 4GE optical interface, 2*10Gb uplink interface, and 4 EPON ports for downstream. It can support 256 ONUs under 1:64 splitter ratio.

DOWNLOAD

OP-EOLT 97024P
Chassis
Rack	1U 19 inch standard box
Slots	NA
Uplink Port
QTY	10
Copper	10/100/1000M auto-negotiable,RJ45:4pcs
Optical interface	4 GE
10Gb uplink interface	2*10Gb
PON Port
QTY	4
Physical Interface	SFP Slots
Connector Type	1000BASE-PX20+
Max splitting ratio	1:64
USB Port
QTY	1
Connector Type	TYPE-C
Management Ports
Management Ports	1*100BASE?TX outband port; 1 CONSOLE port

OP-EOLT 97024P
PON Port Specification
Transmission Distance	20KM
PON port speed	Symmetrical 1.25Gbps
Wavelength	1490nm TX,1310nm RX
Connector	SC/PC
Fiber Type	9/125μm SMF
TX Power	+2.5?+7dBm
Rx Sensitivity	-27dBm
Saturation Optical Power	-6dBm
10Gb SFP+ Port Specification
Transmission Distance	10KM
PON port speed	8.5-10.51875Gbps
Wavelength	1310nmTX?1310nmRX
Connector	LC
Fiber Type	Single mode with dual fiber
TX Power	-8.2~+0.5 dBm
Rx Sensitivity	-12.6dBm
Management Mode
Management Mode	SNMP, Telnet, and CLI management mode.
Management Function
Fan Group Detecting Port Status monitoring and configuration management; Layer-2 switch configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS, etc; EPON management function: DBA ,ONU authorization, ACL ,QOS ,etc; Online ONU configuration and management User management Alarm management
Layer-two Switch
Support port VLan and protocol Vlan. Support Vlan tag/Untag ,vlan transparent transmission. Support 4096 VLAN. Support 802.3dd trunk. RSTP. QOS based on port ,VID,TOS and MAC address. IGMP Snooping. 802.x flow control. Port stability statistic and monitoring.
EPON Function
Support port-based rate limitation and bandwidth control. In compliant with IEEE802.3ah Standard. Up to 20KM transmission Distance. Support data encryption, group broadcasting, port Vlan separation, RSTP , etc. Support Dynamic Bandwidth Allocation (DBA). Support ONU auto-discovery/Link detection/remote upgrade of software. Support VLAN division and user separation to avoid broadcast storm. Support various LLID configuration and single LLID configuration. Different user and different service could provide different QoS by means of different LLID channels. Support power-off alarm function, easy for link problem detection. Support broadcasting storm resistance function. Support port isolation between different ports. Support ACL and SNMP to configure data packet filter flexibly Specialized design for system breakdown prevention to maintain stable system. Support dynamic distance calculation on EMS online. Support RSTP, IGMP Proxy
Layer-three Route
Support static unicast. Support static multicast. Support RIP routing protocol. Support dynamic multicast protocol with active source.

Backplane Bandwidth	64G
Dimension	44035044(mmmmmm)
Weight	6kg
Power Supply
220VAC	AC: 90V?240V?47/63Hz
-48DC	DC:-36V?-72V
Power Consumption	50W
Operating Environment
Working Temperature	0~50?
Storage Temperature	-40?85?
Relative Humidity	5?90%(non-condensing)
