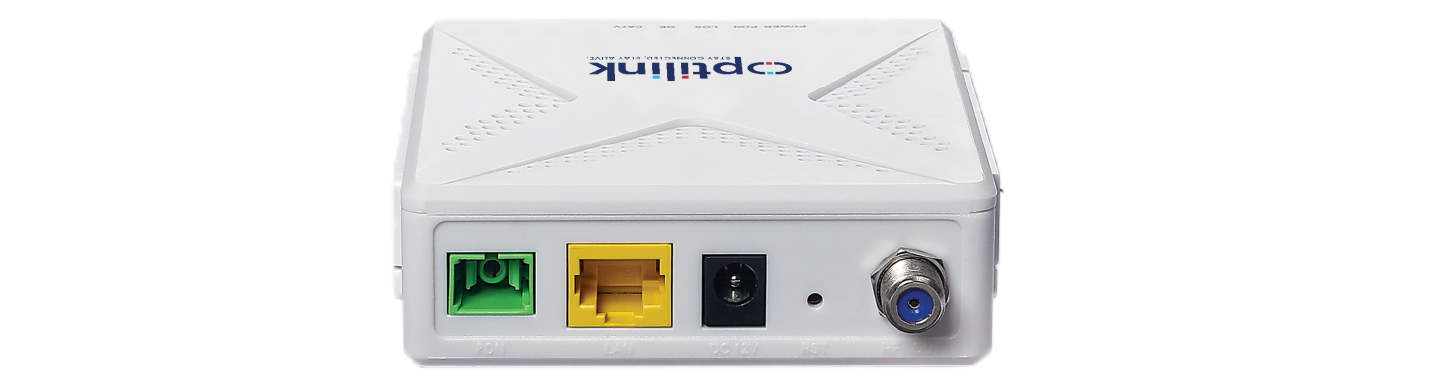

Subscriber End Equipment OP XONT 71000
1GE ONT

MEN Switch, MEN Switches, gpon olt, gpon ont, gepon olt, gepon onu

G/EPON 1GE ONT supports Dual mode(EPON and GPON), It can also be applied to a wide temperature environment, and also has a powerful firewall function.

G/EPON 1GE ONT meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a GPON/EPON Gigabit Ethernet products. The box is based on the mature Gigabit GPON/EPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

DOWNLOAD

OP-XONT 71000
PON interface	1 G/EPON port(EPON PX20+ and GPON Class B+) Wavelength:Tx1310nm,Rx 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM
LAN interface	1 x 10/100/1000Mbps auto adaptive Ethernet interfaces.10/100/1000M Full/Half, RJ45 connector
LED	3, For Status of REG?SYS?LINK/ACT
Operating condition	Temperature: -30??+70? Humidity: 10%?90%?non-condensing?
Storing condition	Temperature:-30??+70? Humidity:10%?90%?non-condensing?
Power supply	DC 12V/0.5A(option)
Power consumption	≤4W
Dimension	82mm×82mm×25mm?L×W×H?
Net weight	85g
